Let us learn about the common capacity design simply.

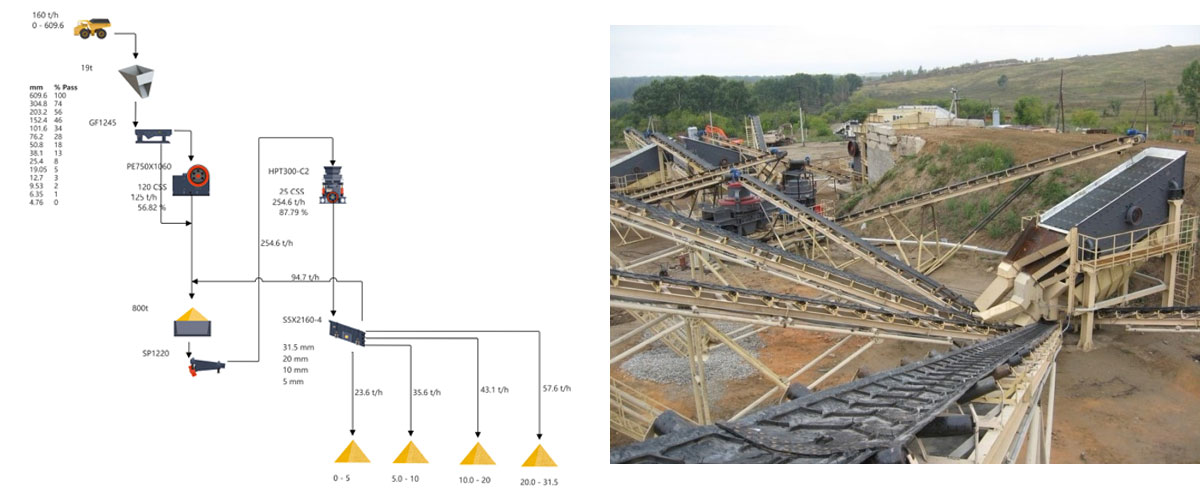

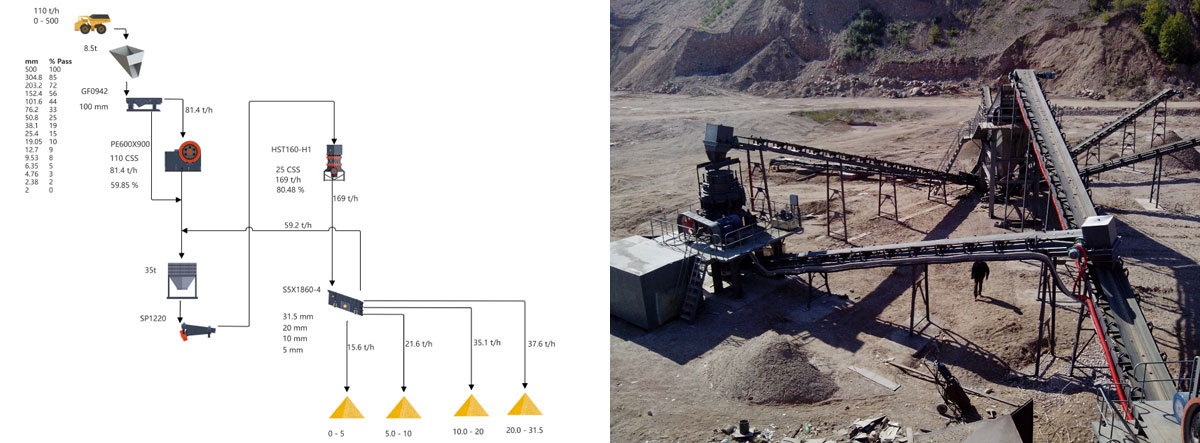

80-120TPH stone crushing line flow sample

Design插图

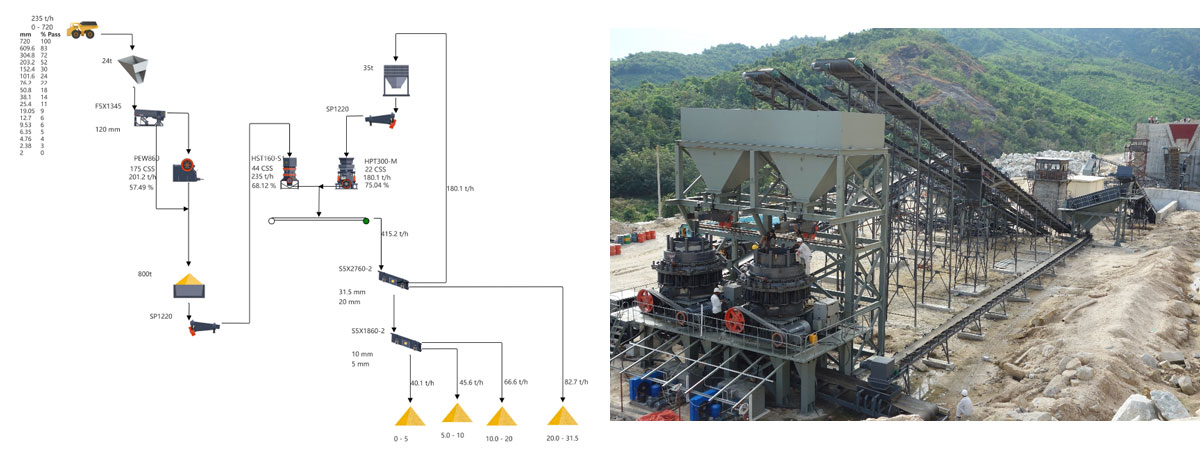

150-180TPH stone crushing line flow sample

Design插图1

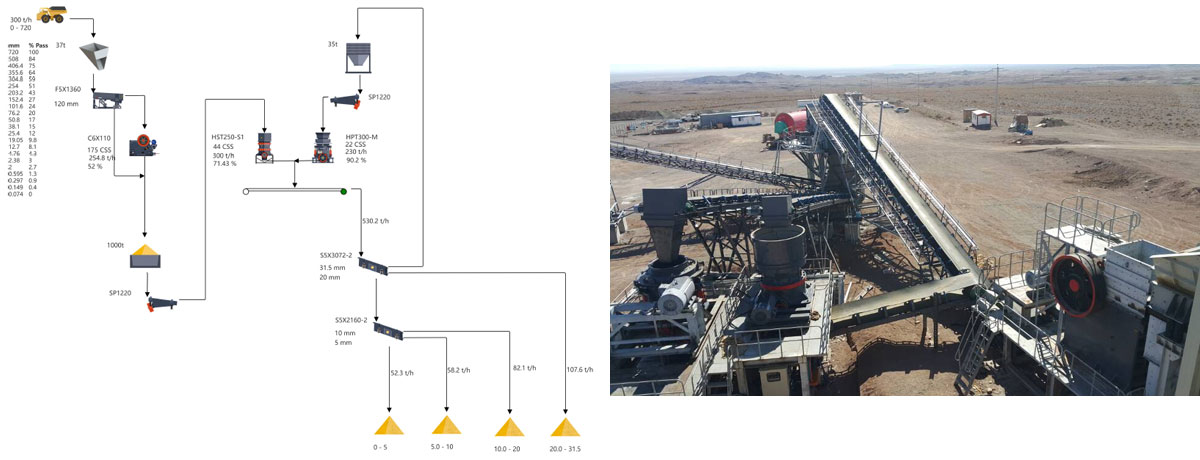

220-250TPH stone crushing line flow sample

Design插图2

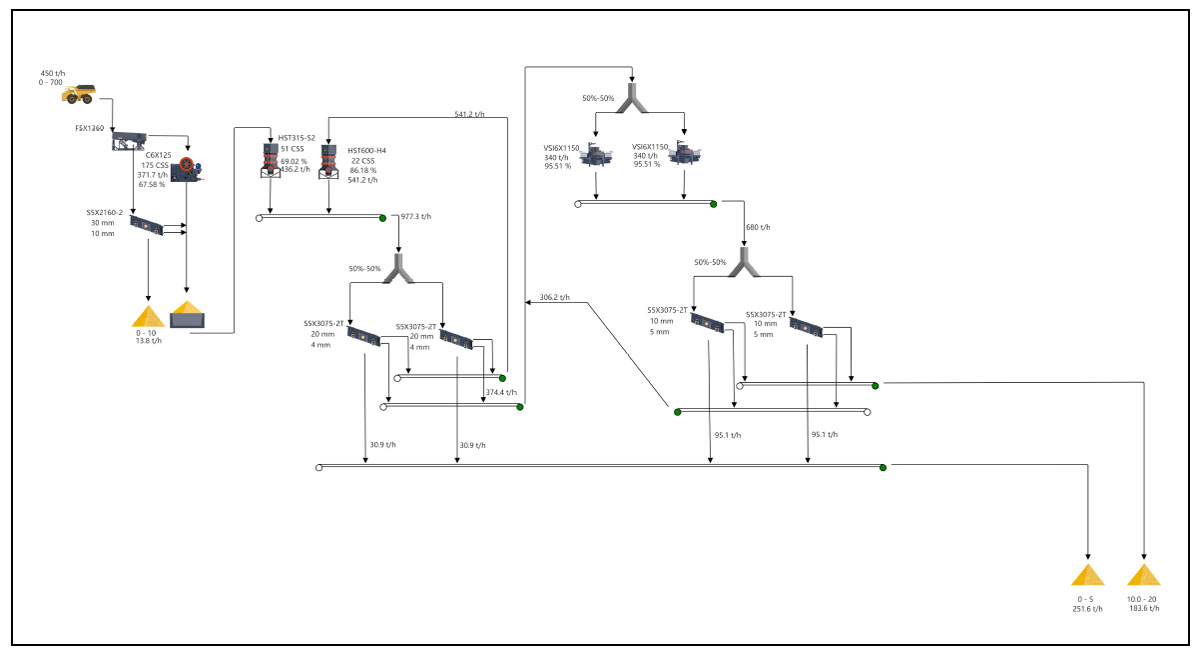

300-350TPH stone crushing line flow sample

Design插图3

Factors important for stone crushing line design:

1. Raw Materials, in other words, the rock style, which is either hard or soft. Hard Stone Commonly seen are basalt,granite and so on. Soft or medium hard stone includes limestone,barite stone and so on. The choice of the secondary crusher model varies concerning different hardness of the stone.

2. The raw material size. We have to choose primary jay crusher of bigger size if the raw stone size is bigger. The total capacity of the whole stone crusher line must depends on suitable raw stone size. It’s not professional to design small capacity with big model, which is also a financial waste for the investors.

3. There’re many different kinds of the finished product size, for example, 0-1/8 inch, 1/8-1/4 inch, 1/4-1/2 inch and 1/2-1 inch or 0-5mm, 5-10mm, 10-20mm and 20-30mm and so on. The different size of the finished product size depends on the different application of the finished stone.

4. The stone crusher line area or topographic map. The perfect design of the stone crusher line always considers local topographic situation and try to reduce the earthwork.

First step;

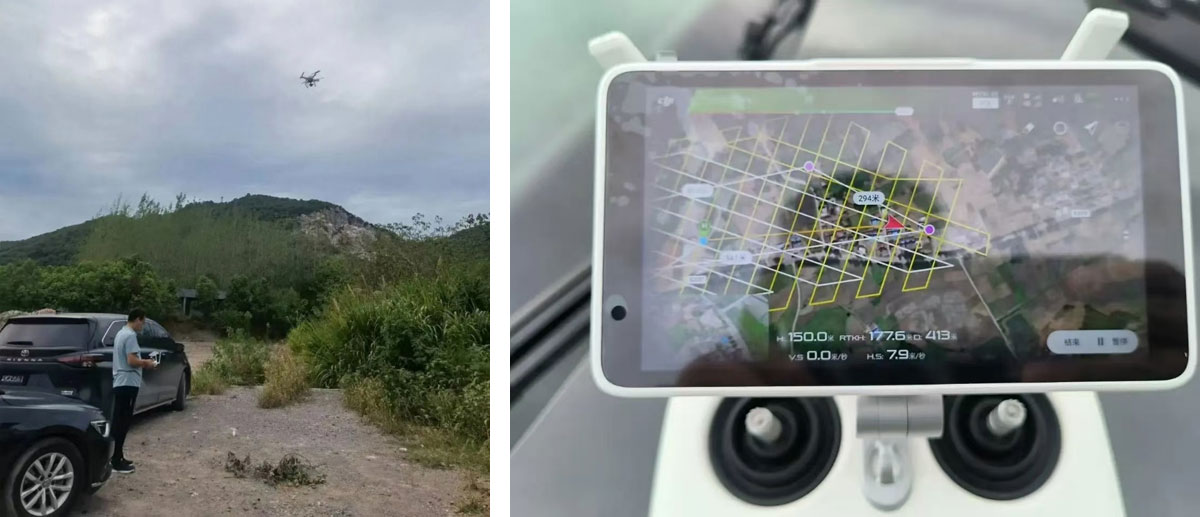

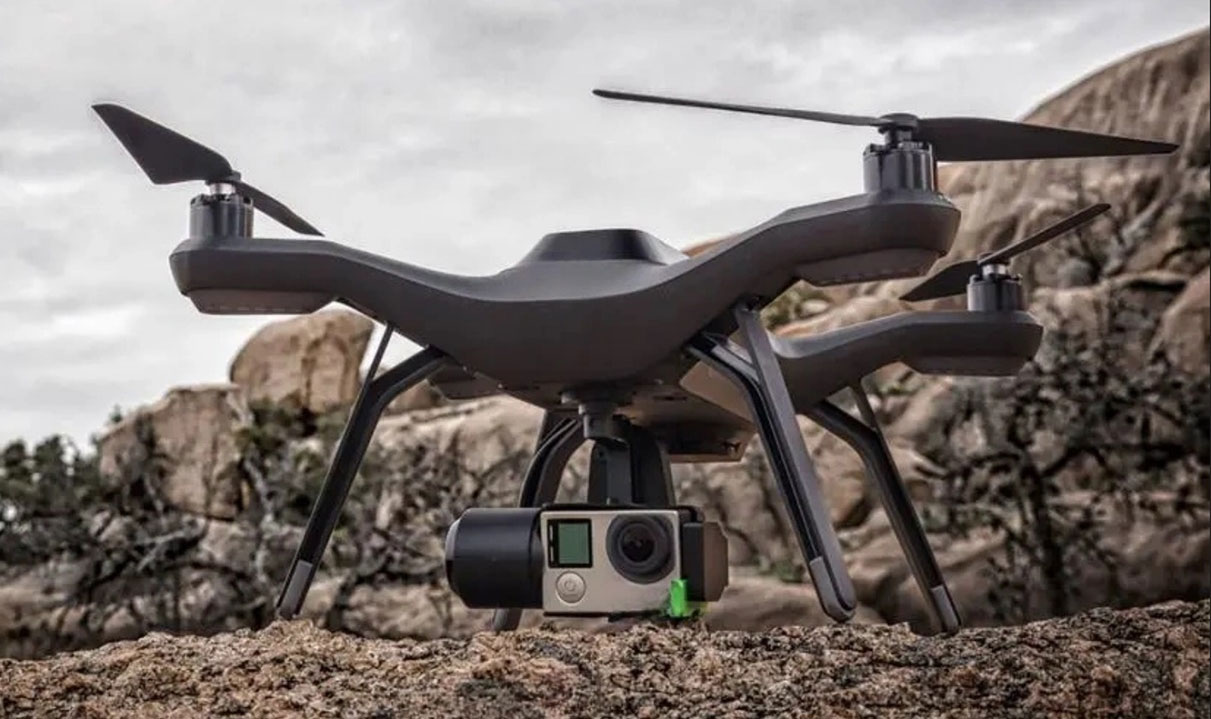

Measuring terrain;

Measuring terrain Measuring terrain

Second step

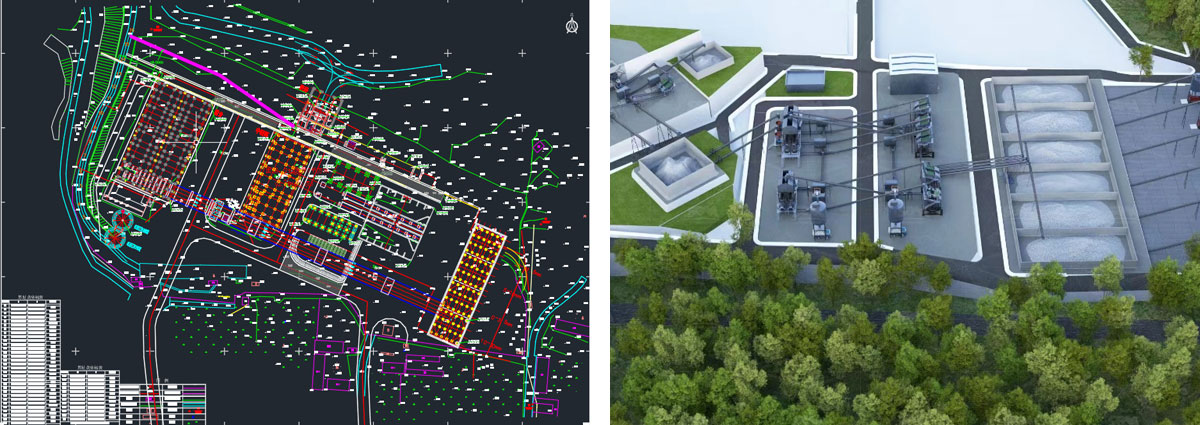

Design

Design Design

Third step;

Discuss with customers

Discuss with customers
