How to choose gyratory crusher
When it comes to selecting a primary crusher for your mining or aggregate operation, gyratory crushers stand out as a reliable, efficient, and high-capacity option. Designed to handle large rocks directly from the mine, gyratory crushers ensure consistent reduction in material size, making them a cornerstone in many crushing processes. This guide will walk you through key factors to consider when choosing a gyratory crusher and why it may be the best choice for your project.
What Is a Gyratory Crusher?
A gyratory crusher is a type of primary crusher used for large-scale mining and aggregate processing. It operates using a circular crushing motion to break down run-on-mine (ROM) materials into smaller aggregates. Gyratory crushers are typically installed vertically and offer high throughput, making them ideal for handling hard and abrasive materials.

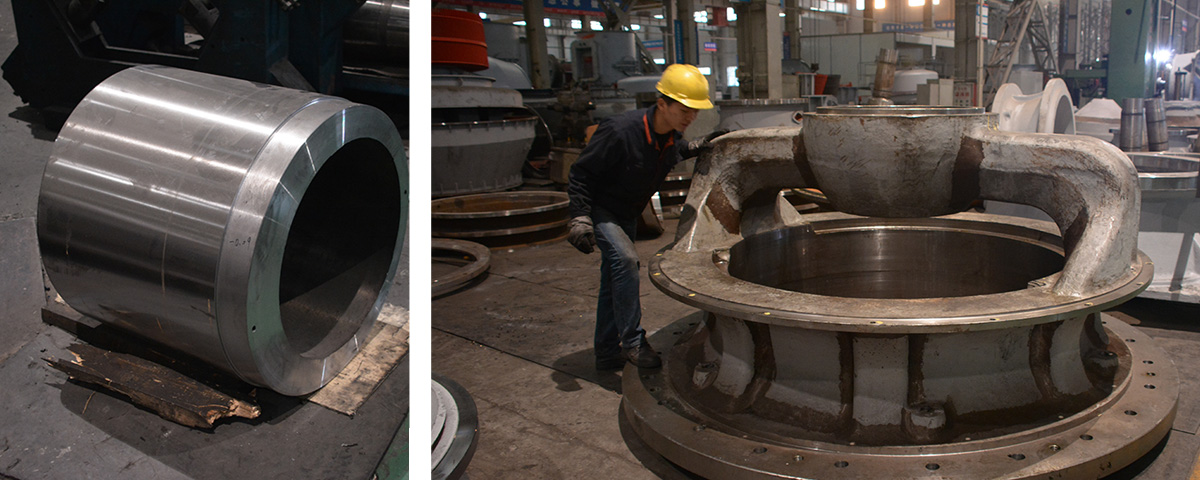

Key Components of a Gyratory Crusher
To understand how a gyratory crusher works, it’s essential to know its key components:
Spider Assembly: Supports the upper main shaft bearing.
Mantle & Concaves: Hardened linings that protect the crusher and ensure consistent crushing.
Eccentric Drive: Powers the gyratory motion for effective crushing.
Hydroset Assembly: A hydraulic system that adjusts the crusher’s settings and provides overload protection.
Main Shaft: Central to the crusher’s operation and responsible for the crushing motion.
How Does a Gyratory Crusher Work?
Gyratory crushers crush material by compressing it between a fixed concave liner and a moving mantle liner mounted on the main shaft. Here’s a step-by-step overview:
Feeding: ROM ore is loaded into the feed hopper by haul trucks.
Primary Crushing: The material passes through the spider assembly and is reduced in size as it moves downward.
Discharge: Crushed material exits through the bottom shell and is conveyed for further processing.
Adjustments: The hydraulic system allows easy adjustment of the mantle height to control the output size.
Benefits of Choosing a Gyratory Crusher
High Capacity: Gyratory crushers can process large volumes of material efficiently, reducing bottlenecks in production.
Durability: Designed for heavy-duty operations, these crushers feature robust construction and long-lasting components.
Precision Output: The adjustable mantle ensures consistent product size and quality.
Low Maintenance: With automated lubrication and durable liners, maintenance requirements are reduced, minimizing downtime.
Versatility: Gyratory crushers perform well in both fixed and semi-mobile installations, making them suitable for diverse conditions.
Gyratory Crushers vs. Cone Crushers: Key Differences
While gyratory and cone crushers are similar, they cater to different crushing needs:
Size Handling: Gyratory crushers are ideal for larger rocks, while cone crushers handle smaller materials.
Output Quality: Cone crushers produce finer materials, whereas gyratory crushers are better for uniform size reduction.
Cost and Maintenance: Cone crushers are generally more affordable but require more frequent maintenance than gyratory crushers.
How to Choose the Right Gyratory Crusher？
Selecting the best gyratory crusher for your project depends on several factors:
Material Characteristics: Evaluate the hardness, abrasiveness, and size of the material.
Capacity Requirements: Ensure the crusher can handle the expected throughput.
Installation Type: Consider whether the crusher will be fixed, semi-mobile, or underground.
Operational Efficiency: Opt for models with automated features like the HGT Gyratory Crusher for simplified operation and maintenance.
Budget: Factor in both initial investment and long-term operating costs.
Why Choose the GCX Gyratory Crusher?
The GCX Gyratory Crusher offers advanced crushing technology tailored to meet modern industry demands:
High Output, Low Costs: A larger feed size and optimized crushing cavity enhance productivity while reducing costs.
Simplified Maintenance: Equipped with an automated lubrication system for seamless operation.
Strong Adaptability: Suitable for diverse conditions, including underground and semi-mobile setups.
Continuous Operation: Heavy-duty construction ensures safety and reliability under high-intensity use.
Conclusion
Choosing the right gyratory crusher is a critical decision that impacts the efficiency and productivity of your operation. Whether you prioritize high capacity, low maintenance, or adaptability, a gyratory crusher offers a reliable solution for large-scale primary crushing.
For expert advice on selecting the best crusher for your needs, contact SBMX today. We offer a range of advanced crushers, including the GCX Gyratory Crusher, designed to meet the demands of modern mining and aggregate processing.
