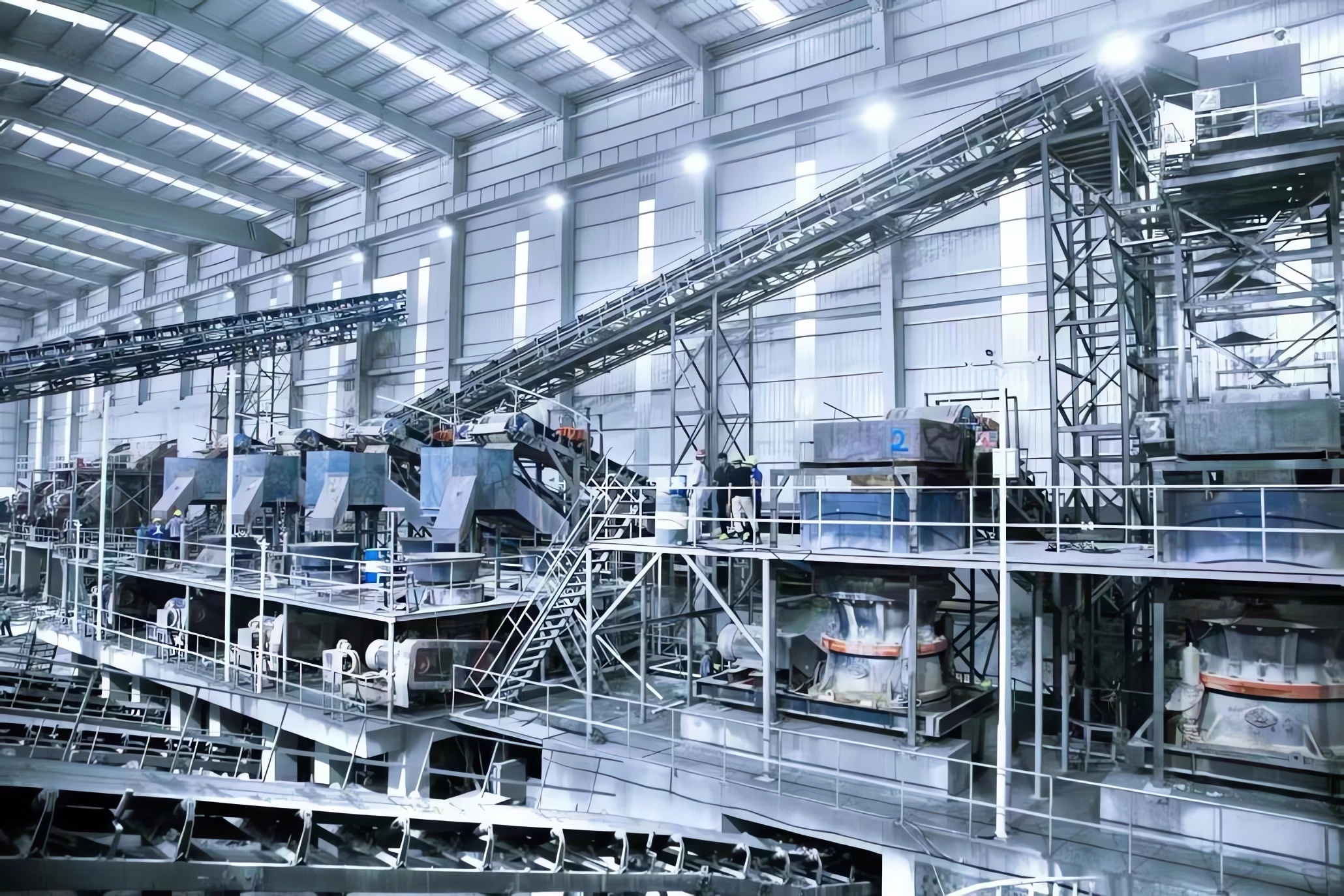

Cone crusher in different working site
Cone crusher normally has two kinds of cavity model, one is coarse cavity model, another is fine cavity model. Coarse cavity cone crusher is used as the secondary crusher after the jaw crusher, which make the 400mm or 300mm size crushed stone into 100mm or 80mm below. Fine coarse cavity cone crusher usually used after coarse cavity cone crusher , which make the 100mm or 80mm size crushed stone into 40mm or 30mm size below.
Of course, the choice of the cone crusher model is very professional process and depends on many factors. Which considers both front jaw crusher and also the next stage screen. The finished product size and shape also depend on the chosen cone crusher model.
So the suitable cone crusher model is very important for the whole product line, in one word, cone crusher model is success and the whole product line is success, otherwise, failed.
If you want to know how to choose or design the cone crusher, please contact us, we will give our most professional suggestions or design.
Singal cylinder cone crusher (as secondary and third crushed process) used in basalt quarry

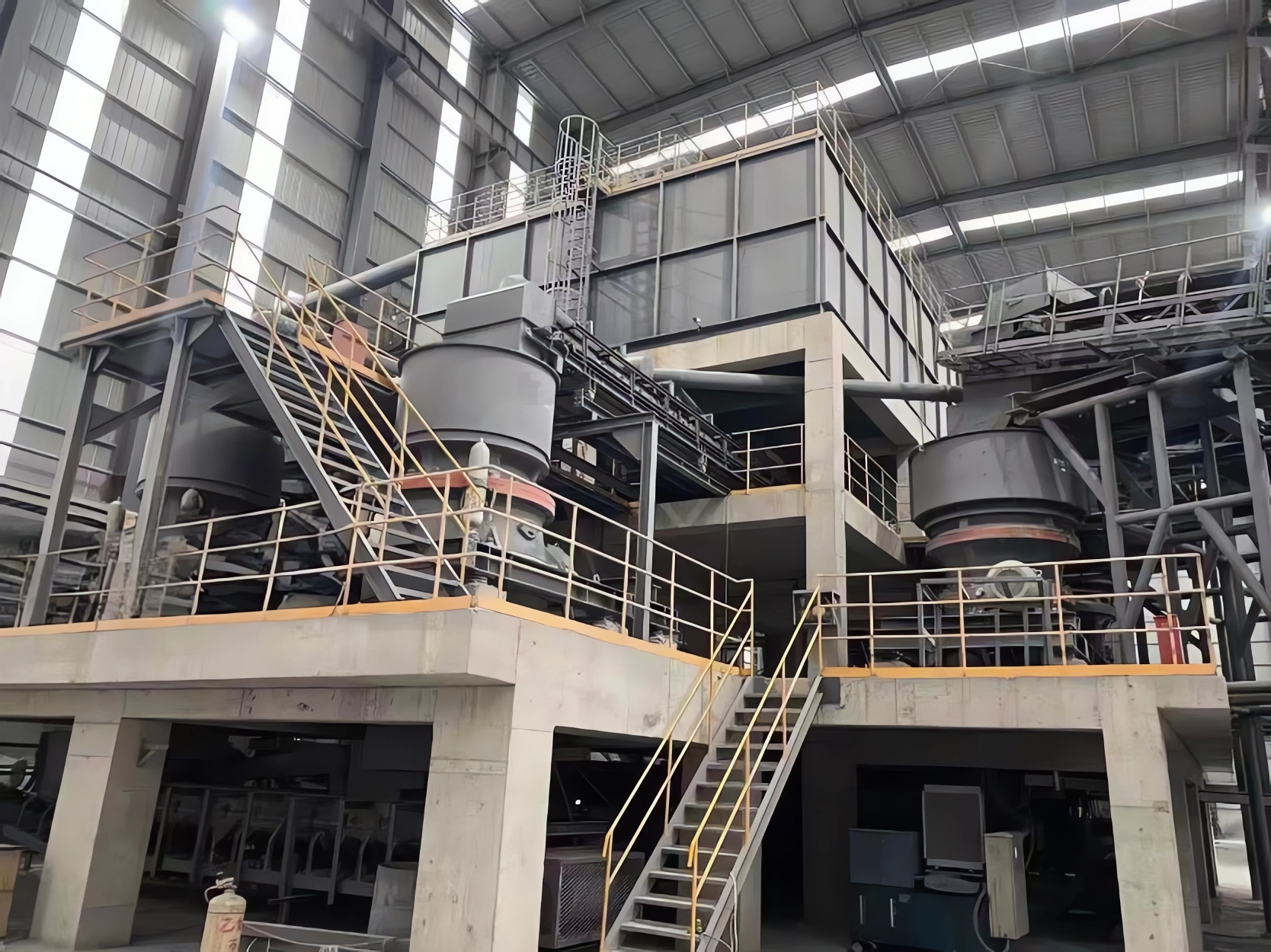

Singal cylinder cone crusher (as secondary and third crushed process) used in granite quarry

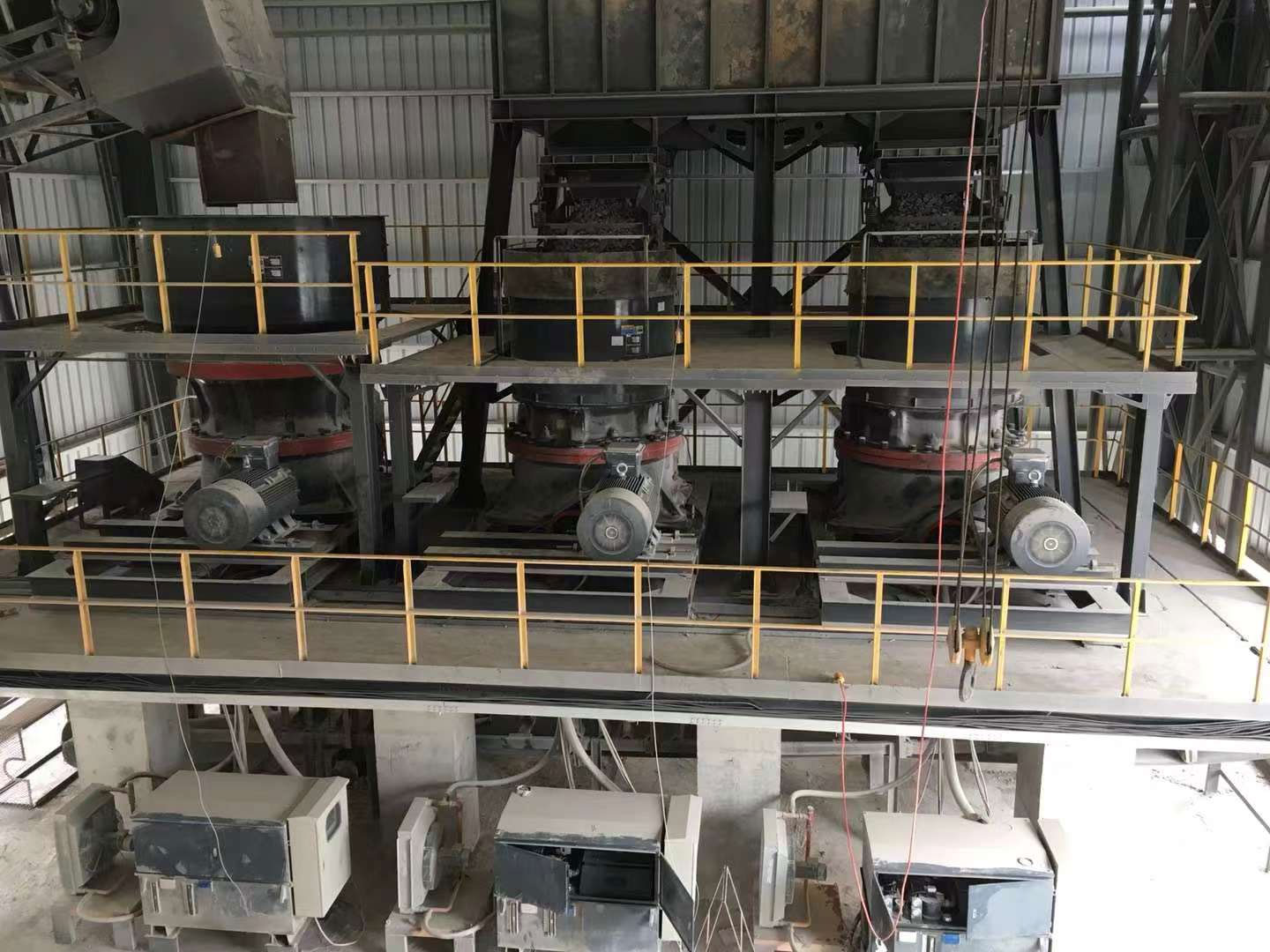

Singal cylinder cone crusher (secondary crushed process) and multi cylinder cone crusher (as third crushed process) used in basalt quarry

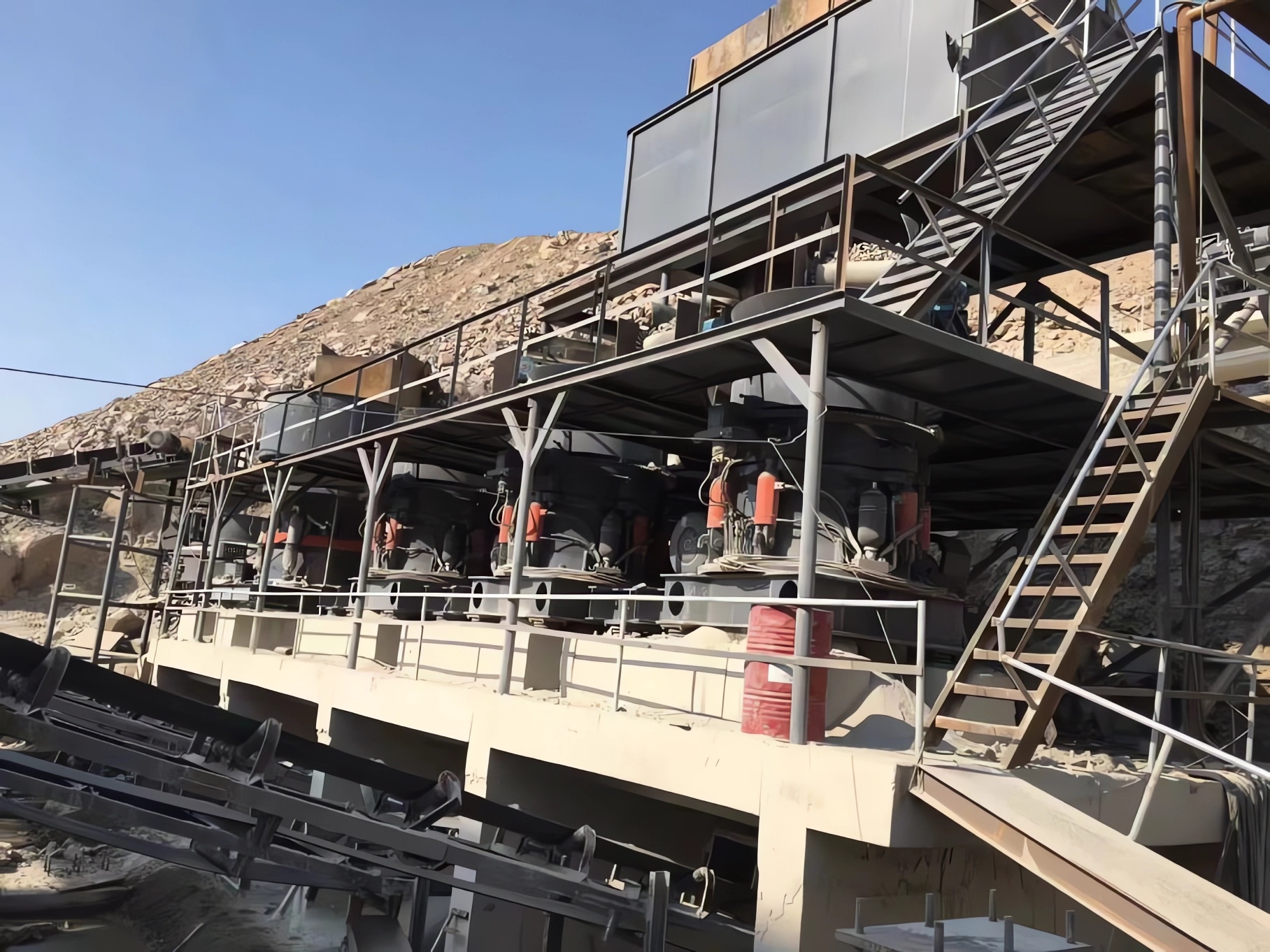

Singal cylinder cone crusher (secondary crushed process) and multi cylinder cone crusher (as third crushed process) used in river stone quarry
Technical Data
PY
| Model | Diameter of Bottom End of Conical Crushing Head (mm) | Max Feeding Size (mm) | Adjustment Range of Discharge Opening (mm) | Capacity (t/h) | Power (kW) | Rev. of Eccentric Shaft (rpm) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|
| PYB600 | 600 | 65 | 12-25 | 40 | 30 | 356 | 2234×1370×1675 |
| PYZ600 | 600 | 35 | 3-13 | 5-23 | 30 | 356 | 2234×1370×1675 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 55 | 333 | 2692×1640×2350 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 55 | 333 | 2692×1640×2350 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 55 | 333 | 2692×1640×2350 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 110 | 300 | 2790×1878×2844 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 110 | 300 | 2790×1878×2844 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 110 | 300 | 2790×1878×2844 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 160 | 245 | 3910×2894×3809 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 160 | 245 | 3910×2894×3809 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 160 | 245 | 3910×2894×3809 |
| PYB2200 | 2200 | 300 | 30-60 | 490-750 | 260-280 | 220 | 4622×3302×4470 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 260-280 | 220 | 4622×3302×4470 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 260-280 | 220 | 4622×3302×4470 |
CS
| Model | Movable Cone Diameter (mm) (inch) | Chamber Style | Closed Side (mm) | Opening Side (mm) | Discharging Opening (mm) | REV (r/min) | Power (kW) | Capacity (t/h) | Machine Size (mm) |
|---|---|---|---|---|---|---|---|---|---|
| Max. Feeding (mm) | |||||||||
| CS75B | 900 (3′) | fine | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 2821×1880×2164 |
| coarse | 159 | 175 | 13-38 | 59-163 | |||||
| CS75D | 900 (3′) | fine | 13 | 41 | 3-13 | 580 | 75 | 27-90 | 2821×1880×2410 |
| medium | 33 | 60 | 3-16 | 27-100 | |||||
| coarse | 51 | 76 | 6-19 | 65-140 | |||||
| CS160B | 1295 (4 1/4′) | fine | 109 | 137 | 13-31 | 485 | 185 | 109-181 | 2800×2342×2668 |
| medium | 188 | 210 | 16-31 | 132-253 | |||||
| coarse | 216 | 241 | 19-51 | 172-349 | |||||
| CS160D | 1295 (4 1/4′) | fine | 29 | 64 | 3-16 | 485 | 160 | 36-163 | 2800×2342×2668 |
| medium | 54 | 89 | 6-16 | 82-163 | |||||
| coarse | 70 | 105 | 10-25 | 109-227 | |||||
| CS240B | 1650 (5 1/2′) | fine | 188 | 209 | 16-38 | 485 | 240 | 181-327 | 3911×2870×3771 |
| medium | 213 | 241 | 22-51 | 258-417 | |||||
| coarse | 241 | 268 | 25-64 | 299-635 | |||||
| CS240D | 1650 (5 1/2′) | fine | 35 | 70 | 5-13 | 485 | 240 | 90-209 | 3917×2870×3771 |
| medium | 54 | 89 | 6-19 | 136-281 | |||||
| coarse | 98 | 133 | 10-25 | 190-336 | |||||
| CS400B | 2134 (7′) | fine | 253 | 278 | 19-38 | 435 | 400 | 381-726 | 5200×4300×4700 |
| medium | 303 | 334 | 25-51 | 608-998 | |||||
| coarse | 334 | 369 | 31-64 | 870-1400 | |||||
| CS400D | 2134 (7′) | fine | 51 | 105 | 5-16 | 435 | 400 | 190-408 | 5200×4300×4700 |
| medium | 95 | 133 | 10-19 | 354-508 | |||||
| coarse | 127 | 178 | 13-25 | 454-599 | |||||
MCCX
| Model | Cavity Type | Feed Opening Size (mm) | Minimum Discharge Opening Size (mm) | Capacity (t/h) | Max Installed Power (kW) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| MCCX100 | C1 (Super Coarse) | 140 | 19 | 75-140 | 90 | 1705×1510×1583 |
| C2 (Coarse) | 100 | 13 | 60-110 | |||
| M (Medium) | 70 | 9 | 52-100 | |||
| F1 (Fine) | 50 | 9 | 50-95 | |||
| F2 (Super Fine) | 20 | 6 | 45-90 | |||
| MCCX200 | C2 (Coarse) | 185 | 19 | 145-250 | 160 | 2135×1750×1927 |
| M (Medium) | 125 | 16 | 135-235 | |||
| F1 (Fine) | 95 | 13 | 115-220 | |||
| F2 (Super Fine) | 75 | 10 | 90-190 | |||
| MCCX300 | C1 (Super Coarse) | 230 | 25 | 220-440 | 250 | 2725×2110×2871 |
| C2 (Coarse) | 210 | 19 | 190-380 | |||
| M (Medium) | 150 | 16 | 175-320 | |||
| F1 (Fine) | 105 | 13 | 145-280 | |||
| F2 (Super Fine) | 80 | 10 | 110-240 | |||
| MCCX400 | C1 (Super Coarse) | 295 | 30 | 300-630 | 315 | 2775×2370×2295 |
| C2 (Coarse) | 251 | 25 | 285-560 | |||
| M (Medium) | 196 | 20 | 250-490 | |||
| F1 (Fine) | 110 | 13 | 180-345 | |||
| F2 (Super Fine) | 90 | 10 | 135-320 | |||
| MCCX500 | C1 (Super Coarse) | 330 | 38 | 425-790 | 400 | 2800×3480×4050 |
| C2 (Coarse) | 290 | 30 | 370-700 | |||
| M (Medium) | 210 | 22 | 330-605 | |||
| F1 (Fine) | 135 | 16 | 270-535 | |||
| F2 (Super Fine) | 95 | 13 | 220-430 | |||
| MCCX800 | C1(Super Coarse) | 350 | 38 | 570-1200 | 630 | 3970×3345×4235 |
| C2(Coarse) | 299 | 32 | 520-1050 | |||
| M(Medium) | 265 | 25 | 475-950 | |||
| F1(Fine) | 220 | 16 | 370-800 | |||
| F2(Super Fine) | 150 | 13 | 310-600 |
SCCX
| Model | Cavity Type | Feed Opening Size (mm) | Minimum Discharge Opening Size (mm) | Capacity (t/h) | Max Installed Power (kW) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| SCCX100 | S1 | 240 | 22 | 85-170 | 90 | 1550×1575×2545 |
| S2 | 200 | 19 | 70-130 | |||
| H1 | 135 | 10 | 45-115 | 1550×1575×1965 | ||
| H2 | 65 | 8 | 35-80 | |||
| H3 | 35 | 4 | 27-60 | |||
| SCCX160 | S1 | 360 | 25 | 120-345 | 160 | 1875×1920×3195 |
| S2 | 300 | 22 | 105-305 | |||
| S3 | 235 | 19 | 90-275 | |||
| H1 | 185 | 13 | 66-210 | 1875×1920×2400 | ||
| H2 | 90 | 10 | 65-165 | |||
| H3 | 50 | 6 | 48-105 | |||
| SCCX250 | S1 | 450 | 35 | 255-605 | 250 | 2100×2320×4096 |
| S2 | 400 | 29 | 215-515 | |||
| S3 | 300 | 25 | 190-490 | |||
| H1 | 215 | 16 | 110-395 | 2100×2320×2780 | ||
| H2 | 110 | 13 | 115-340 | |||
| H3 | 70 | 8 | 90-255 | |||
| SCCX315 | S1 | 560 | 41 | 335-1050 | 315 | 2380×2735×4630 |
| S2 | 500 | 38 | 305-895 | |||
| H1 | 275 | 16 | 170-665 | 2380×2735×3265 | ||
| H2 | 135 | 16 | 190-505 | |||
| H3 | 65 | 13 | 205-320 | |||
| SCCX500 | S1 | 560 | 54 | 575-1505 | 500 | 3216×2978×4892 |
| S2 | 500 | 54 | 550-1435 | |||
| H1 | 315 | 16 | 290-900 | 2490×2909×4267 | ||
| H2 | 265 | 16 | 330-1015 | |||
| H3 | 195 | 16 | 315-975 | |||
| H4 | 155 | 13 | 280-940 | |||
| H5 | 110 | 13 | 245-585 | |||
| H6 | 65 | 10 | 175-460 | |||
| SCCX600 | H1 | 370 | 22 | 450-1510 | 630 | 3367×2866×4531 |
| H2 | 240 | 19 | 405-1465 | |||
| H3 | 195 | 19 | 380-1375 | |||
| H4 | 155 | 19 | 400-1370 | |||
| H5 | 100 | 16 | 380-945 | |||
| H6 | 80 | 10 | 280-775 | |||
| SCCX750 | H1 | 428 | 25 | 390-2185 | 750 | 3623×3100×5305 |
| H2 | 230 | 16 | 265-1815 | |||
| H3 | 120 | 13 | 245-1165 | |||
| H4 | 100 | 13 | 210-995 | |||
| H5 | 85 | 10 | 185-950 | |||
| H6 | 75 | 10 | 175-855 |
Note:
The product images, models, data, functions, performances, specifications, and parameters on this website are for reference only. SBMX may make improvements to the aforementioned content. For specific information, please refer to the actual product and its product manual. Unless otherwise specified,SBMX reserves the right to interpret the data involved on this website.
