The Essential Role of Vibrating Feeders and Feed Hoppers in Mining and Construction
In the mining and construction industry, ensuring a smooth and continuous flow of materials is critical for operational efficiency. Vibrating feeders, or vibratory feeders, play a pivotal role in achieving this goal. Paired with strategically designed feed hoppers, they form a robust system essential for handling materials in a variety of industries, from mining and quarrying to cement and recycling.
The Role of Vibrating Feeders

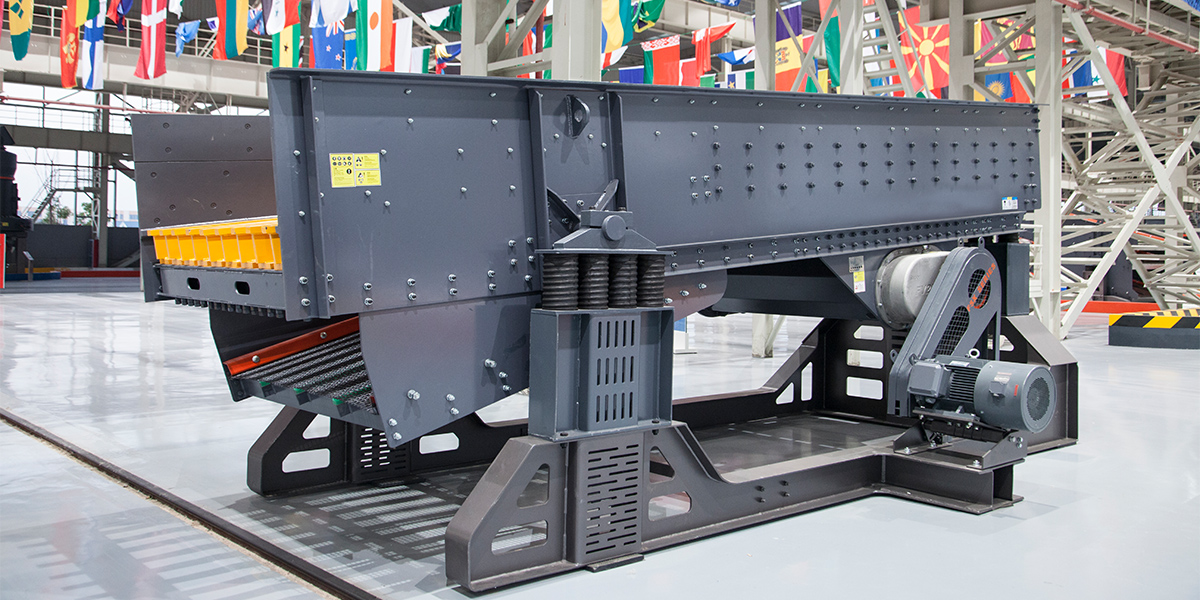

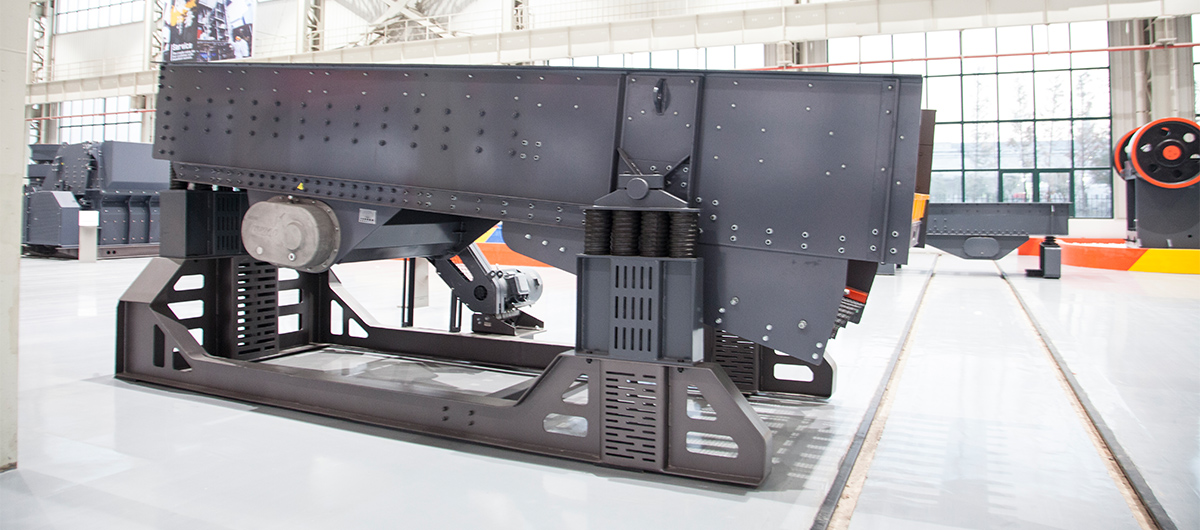

Vibrating feeders are indispensable when it comes to delivering a constant flow of dry or moist ore, rock, and mineral fractions. Designed to handle heavy-duty operations, these feeders ensure minimal downtime and maximum throughput. SBMX’s vibrating feeders are globally recognized for their performance, providing reliable and quiet operation while significantly reducing energy costs. From stationary models built for demanding applications to flexible designs for mobile setups, these feeders cater to diverse requirements.
The Importance of Feed Hoppers
A well-designed feed hopper is integral to the feeding system. It serves as a storage unit, managing material flow to prevent bottlenecks or uneven distribution in the processing line. By combining a vibrating feeder with an appropriately sized hopper, operators can maintain consistent material delivery, reducing the risk of equipment overload or operational inefficiencies. For primary feeding applications, apron feeders are often selected for their ability to handle larger feed materials effectively.
Key Features for Selection
Selecting the right feeder and hopper depends on several factors, including material characteristics, required capacity, and application type. SBMX’s vibratory feeders are designed with advanced polarization principles and high-quality materials, making them suitable for even the hardest and most abrasive substances. Key features of SBM feeders include:
Heavy-duty construction: Built for durability in the harshest environments.
Exclusive vibrator technology: Ensures a steady and efficient material flow.

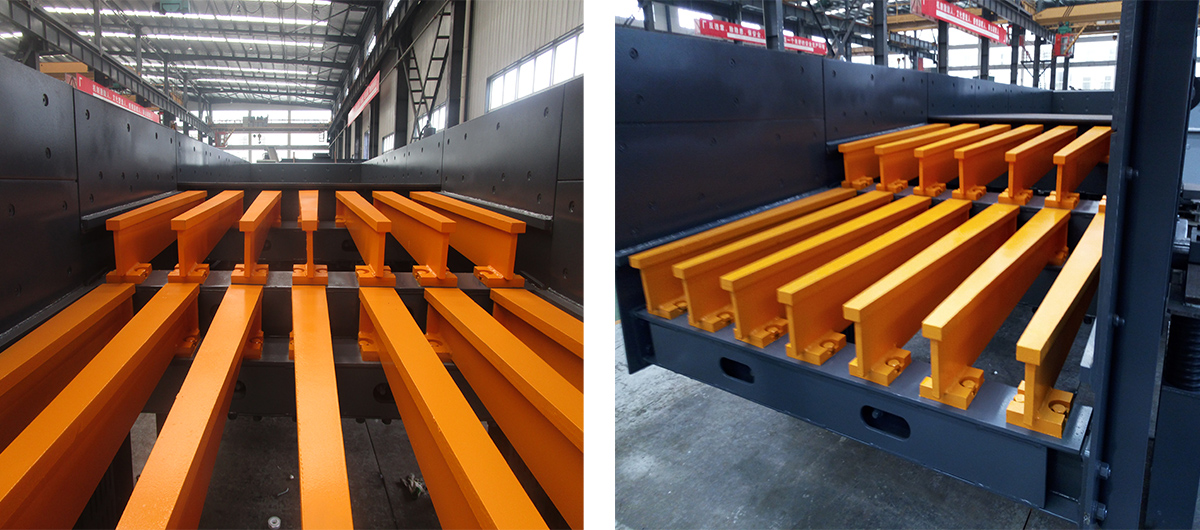

Flexible design: Allows for adjustments in grizzly opening and deck slope to meet specific operational needs.
SBMX’s feeders have proven their effectiveness across various industries, including metallurgical, coal mining, building materials, and chemical industries. Their ability to handle continuous operations with low maintenance requirements makes them a preferred choice for thousands of installations worldwide.
Conclusion
Whether your project involves mining, construction, or material recycling, an efficient feeding system is essential to optimize productivity and reduce costs. With robust designs, advanced technology, and years of service-proven performance, SBM’s vibrating feeders and feed hoppers provide a reliable solution tailored to your needs. Their flexibility and durability ensure that they can handle the challenges of modern industrial processes while maintaining consistent output.
Trust SBMX to deliver feeding solutions that drive your success.
Technical Data
ZSW
| Model | Trough Size(mm) | Max Feeding (mm) | Capacity (t/h) | REV (r/min) | Power (kW) | Motor Model | Machine Size(mm) |
| ZSW 180×80 | 1800×800 | 300 | 30-80 | 970 | 1.5×2 | 2200×1100×800 | |
| ZSW 200×120 | 2000×1200 | 300 | 80-500 | 970 | 2.2×2 | 2000×1200×855 | |
| ZSW 300X90 | 3000×900 | 300 | 40-100 | 970 | 2.2×2 | 3050×1430×1550 | |
| ZSW 380X96 | 3800×960 | 500 | 90-200 | 710 | 15 | Y180L-6/15 | 3880×2240×1880 |
| ZSW 420X110 | 4200×1100 | 580 | 150-350 | 710 | 15 | Y180L-6/15 | 4300×2450×2010 |
| ZSW 490X110 | 4900×1100 | 580 | 180-380 | 780 | 15 | Y180L-6/15 | 4980×2450×2010 |
| ZSW 490X130 | 4900×1300 | 750 | 250-450 | 780 | 22 | Y200L2-6/22 | 4980×2710×2050 |
| ZSW 600X150 | 6000×1500 | 800 | 600-1000 | 780 | 30 | Y255M-6/30 | 6160×2919×2293 |
VFX
| Model | Trough Size (mm) | Bar Length (mm) | Installation Angle (°) | Rotational Speed (Adjustable Range) (r/min) | Double Amplitude (mm) | Max Feed Size (mm) | Capacity (t/h) | Power (kW) | Dimensions (mm) |
| VFX1045（M） | 1000×4500 | 1×1200 | 5(0-10) | 1000(500-1000) | 8.5 | 700 | 400 | 15 | 4475×1660×1485 |
| VFX1345（M） | 1300×4500 | 1×1200 | 900 | 600 | 22 | 4475×1960×1485 | |||
| VFX1360（S） | 1300×6000 | 2×1200 | 900 | 600 | 30 | 6195×1960×1680 | |||
| VFX1645（M） | 1600×4500 | 1×1200 | 1200 | 1000 | 22 | 4475×2260×1485 | |||
| VFX1660（S） | 1600×6000 | 2×1200 | 1200 | 1000 | 30 | 6195×2260×1680 | |||
| VFX2060 | 2000×6000 | 2×1200 | 5(0-15) | 1000(500-1000) | 8.5 | 1500 | 2400 | 45 | 6195×2660×1680 |
| VFX1354G | 1300×5000 | 4×900 | 5(0-10) | 1000(500-1000) | 8 | 900 | 500 | 22 | 4998×2601×2571 |
| VFX1654G | 1600×5000 | 4×900 | 5(0-10) | 1000(500-1000) | 8 | 1200 | 800 | 30 | 4998×2931×2571 |
| VFX2054G | 2000×5000 | 4×900 | 5(0-10) | 1000(500-1000) | 8 | 1500 | 1200 | 45 | 4998×3481×2625 |
VF
| Model | Feeder Size (mm) | Max Feed Particle Size (mm) | Bar Length (mm) | Installation Angle (°) | Rotation Speed (Adjustable Range) (r/min) | Double Amplitude (mm) | Capacity (t/h) | Power (kW) | Overall Dimensions (mm) |
| VF0942(M) | 900×4200 | 500 | 2×700 | 0 | 1000 | 5-8 | 280 | 2.9X2 | 4200×1520×1481 |
| VF0942S | 900×4200 | 500 | 2×700 | 0 | 1000 | 5-8 | 280 | 2.9X2 | 4200×1520×1481 |
| VF1245(M) | 1200×4500 | 700 | 2×900 | 0 | 1000 | 5-8 | 450 | 6×2 | 4500×1840×1555 |
| VF1245S | 1200×4500 | 700 | 2×900 | 0 | 1000 | 5-8 | 450 | 6×2 | 4500×1840×1555 |
Note:
The product images, models, data, functions, performances, specifications, and parameters on this website are for reference only. SBMX may make improvements to the aforementioned content. For specific information, please refer to the actual product and its product manual. Unless otherwise specified,SBMX reserves the right to interpret the data involved on this website.
