Gyratory crusher in different working site
Gyratory crusher is usually as the primary crusher which capacity is about 1500 ton per hour to 4500 ton per hour, which is usually used in metal mining industry and no-metal mining industry. If the total capacity of the crushing system is bigger than 1500 ton per hour, the design should consider about the Gyratory crusher.
Of course, the capacity is not the only determined factor to choice of the gyratory crusher, for example, when there is lot of clay in the raw materials which is not suitable for the gyratory crusher. Normally many many minerals owner would like to use two or more sets of jaw crusher instead of gyratory crusher.

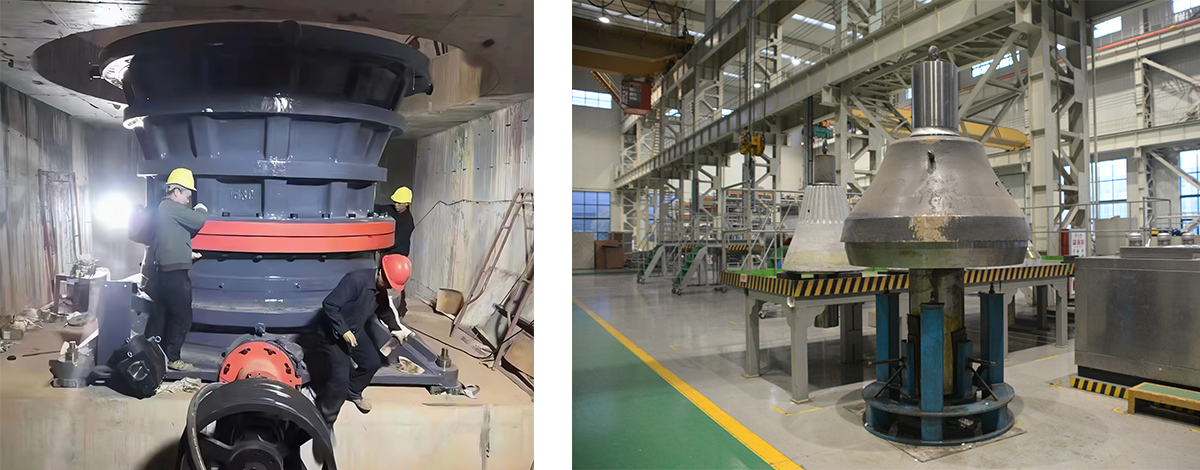

Gyratory crusher is being installed in iron ore quarry
Technical Data
GCX
| Model | Cone Diameter (mm) | Feed Opening Size (mm) | Discharge Opening Range (mm) | Capacity (t/h) | Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| GCX4265 | 1650 | 1065 | 140-175 | 2015-2875 | 450 | 3940×4170×6900 |
| GCX5065 | 1650 | 1270 | 150-175 | 2400-2940 | 450 | 4460×4430×7610 |
| GCX5475 | 1905 | 1370 | 150-200 | 2890-3490 | 600 | 4930×4925×8410 |
| GCX6275 | 1905 | 1575 | 150-200 | 2895-4335 | 600 | 5580×5250×9090 |
| GCX6089 | 2260 | 1525 | 165-230 | 4200-5810 | 750 | 5590×5445×10470 |
| GCX60110 | 2795 | 1525 | 175-250 | 5540-8895 | 1500 | 6200×5940×11390 |
Note:
The product images, models, data, functions, performances, specifications, and parameters on this website are for reference only. SBMX may make improvements to the aforementioned content. For specific information, please refer to the actual product and its product manual. Unless otherwise specified,SBMX reserves the right to interpret the data involved on this website.
