Jaw crusher in different working site
Jaw crusher as the primary crusher is widely used in the first crushed stage, Which make the raw stone from the 1000 mm crush into 400mm or 300mm size below. Whether hard stone or soft stone, jaw crusher can suitable for both hardness stone.
Cone crusher or impact crusher as the secondary crusher after the jaw crusher, so suitable model and capacity jaw crusher is very important for the next crushed stage. In general, the chosen bigger capacity jaw crusher is better for the whole stone crushed product line.
If you want to know how to choose or design the jaw crusher, please contact us, we will give our most professional suggestions or design.

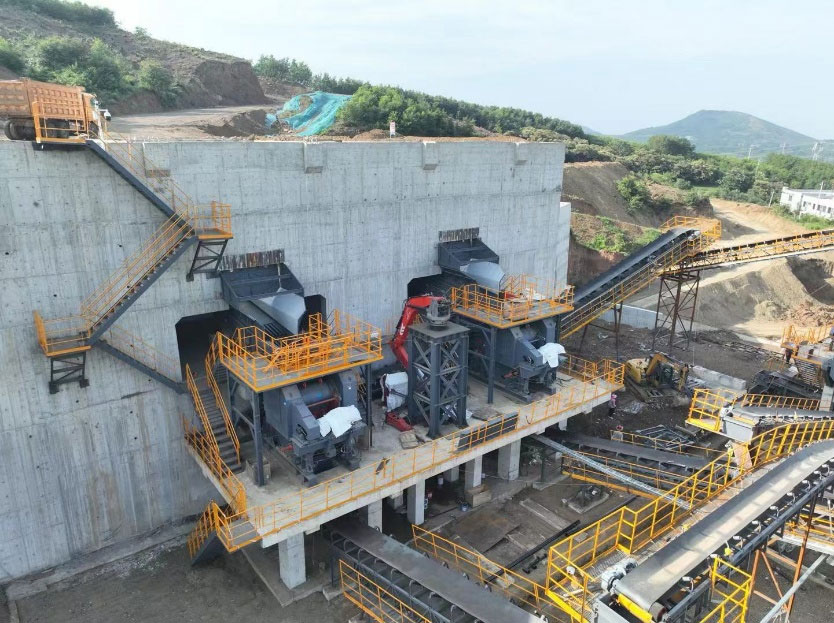

Jaw crusher is used in basalt stone quarry

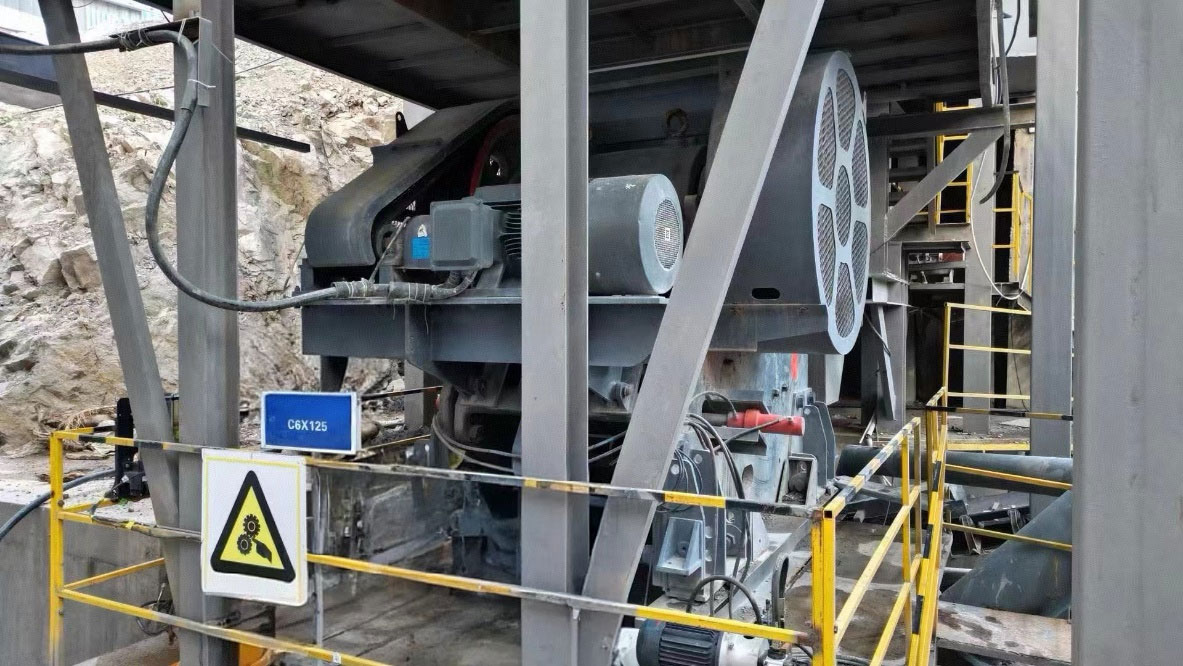

Jaw crusher used in limestone quarry

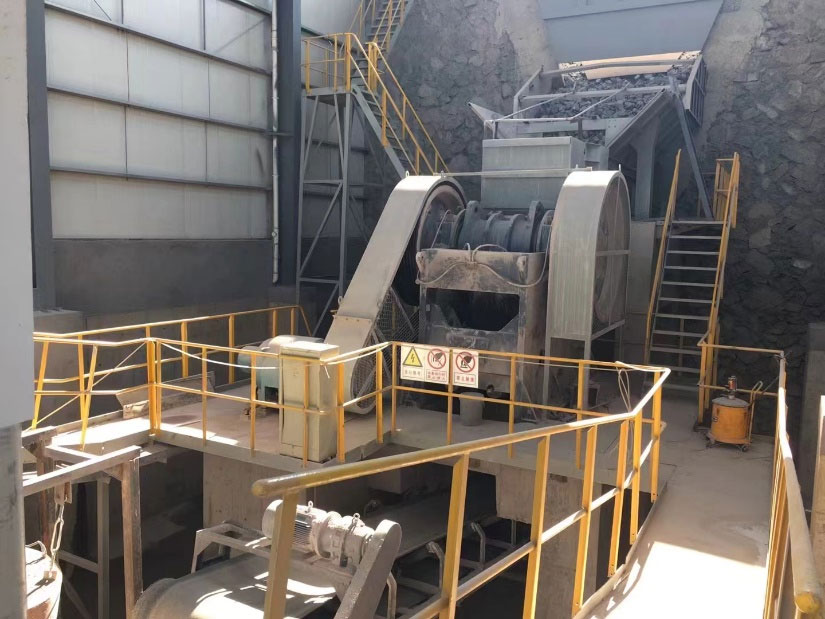

Jaw crusher used in granite quarry
Technical Data
PE
| Model | Feed opening (mm) | Maximum feeding size (mm) | Range of discharge opening (mm) | Capacity (t/h) | Speed (r/min) | Power (kW) | Overall dimension (mm) |
|---|---|---|---|---|---|---|---|
| PE750 | 500×750 | 425 | 50-100 | 45-100 | 275 | 55 | 1890×1916×1870 |
| PE900 | 600×900 | 500 | 65-160 | 90-180 | 250 | 55-75 | 2520×1840×2303 |
| PE1060 | 750×1060 | 630 | 80-140 | 130-260 | 250 | 90-110 | 2620×2302×3110 |
| PE1200 | 900×1200 | 750 | 95-200 | 220-380 | 200 | 132 | 3789×2826×3025 |
| PE1200 | 1000×1200 | 850 | 195-265 | 280-500 | 200 | 132 | 3889×2826×3025 |
| PE1500 | 1200×1500 | 1020 | 150-300 | 460-900 | 190 | 200 | 4930×3150×3700 |
JCW
| Model | Feed opening (mm) | Maximum feeding size (mm) | Range of discharge opening (mm) | Capacity (t/h) | Speed (r/min) | Power (kW) | Overall dimension (mm) |
|---|---|---|---|---|---|---|---|
| JCW1000 | 250×1000 | 220 | 20-40 | 15-50 | 330 | 30 | 1400×1850×1310 |
| JCW1200 | 250×1200 | 220 | 20-40 | 20-50 | 330 | 37 | 1400×2050×1310 |
| JCW600 | 400×600 | 350 | 35-85 | 15-70 | 250 | 37 | 1920×1460×1840 |
| JCW760 | 760×1100 | 640 | 75-200 | 150-350 | 270 | 110 | 2600×2500×2200 |
| JCW860 | 860×1100 | 720 | 100-225 | 200-500 | 240 | 132 | 3300×2320×3120 |
JC
| Model | Feed Inlet Size (mm) | Discharge Outlet Adjustment Range (mm) | Capacity (t/h) | Rotational Speed (r/min) | Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| JC800 | 520×800 | 60-150 | 70-290 | 350 | 75 | 2450×1420×1720 |
| JC950 | 580×950 | 60-150 | 100-340 | 330 | 90 | 2530×1760×1860 |
| JC1000 | 760×1000 | 70-175 | 130-420 | 260 | 110 | 3520×1960×2450 |
| JC1100 | 850×1100 | 80-200 | 150-550 | 230 | 132 | 3570×2420×2550 |
| JC1250 | 950×1250 | 100-225 | 230-690 | 220 | 160 | 3920×2820×2760 |
| JC1450 | 1100×1450 | 125-250 | 310-870 | 220 | 200 | 4400×3120×3200 |
JCX
| Model | Feed Inlet Size (mm) | Discharge Outlet Adjustment Range (mm) | Capacity (t/h) | Rotational Speed (r/min) | Power (kW) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| JCX800 | 520×800 | 60-150 | 80-290 | 350 | 75 | 2650×1540×1780 |
| JCX1000 | 760×1000 | 70-175 | 130-420 | 260 | 110 | 3700×2440×2520 |
| JCX1100 | 850×1100 | 80-200 | 160-550 | 230 | 160 | 3800×2450×2550 |
| JCX1250 | 950×1250 | 100-250 | 230-760 | 220 | 160 | 4100×2750×2780 |
| JCX1450 | 1100×1450 | 125-275 | 320-950 | 220 | 200 | 4400×3060×3210 |
| JCX1600 | 1200×1600 | 150-300 | 410-1150 | 220 | 250 | 5700×3650×3550 |
| JCX1800 | 1200×1800 | 150-300 | 490-1300 | 220 | 315 | 5850×4150×3600 |
| JCX2000 | 1500×2000 | 175-300 | 610-1510 | 200 | 400 | 6500×3990×4260 |
Note:
The product images, models, data, functions, performances, specifications, and parameters on this website are for reference only. SBMX may make improvements to the aforementioned content. For specific information, please refer to the actual product and its product manual. Unless otherwise specified,SBMX reserves the right to interpret the data involved on this website.
