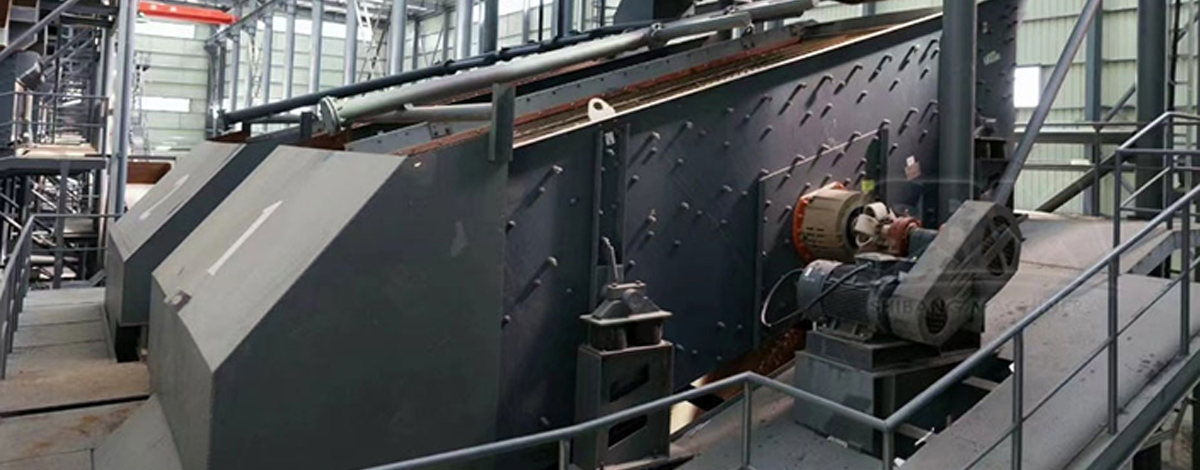

Screen

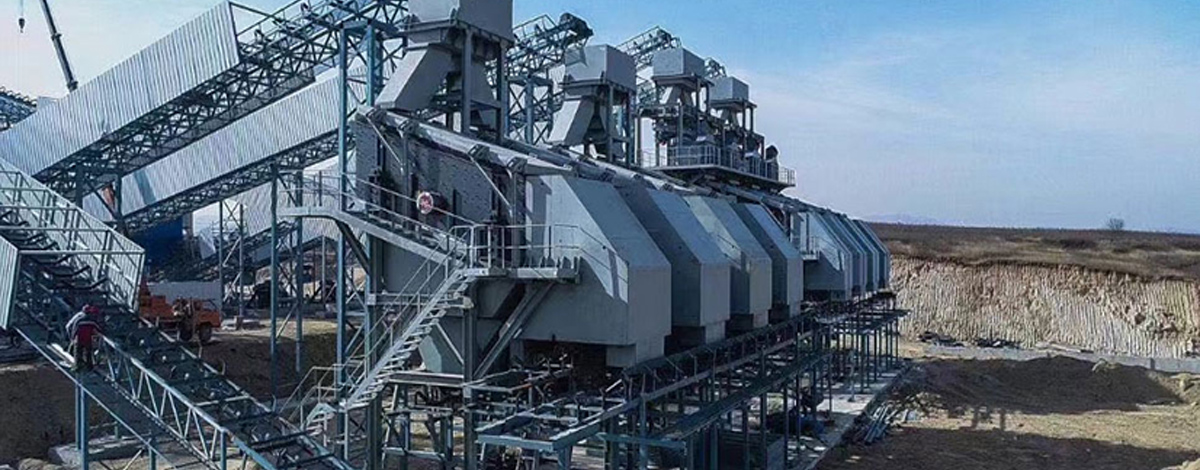

Screen in different working site

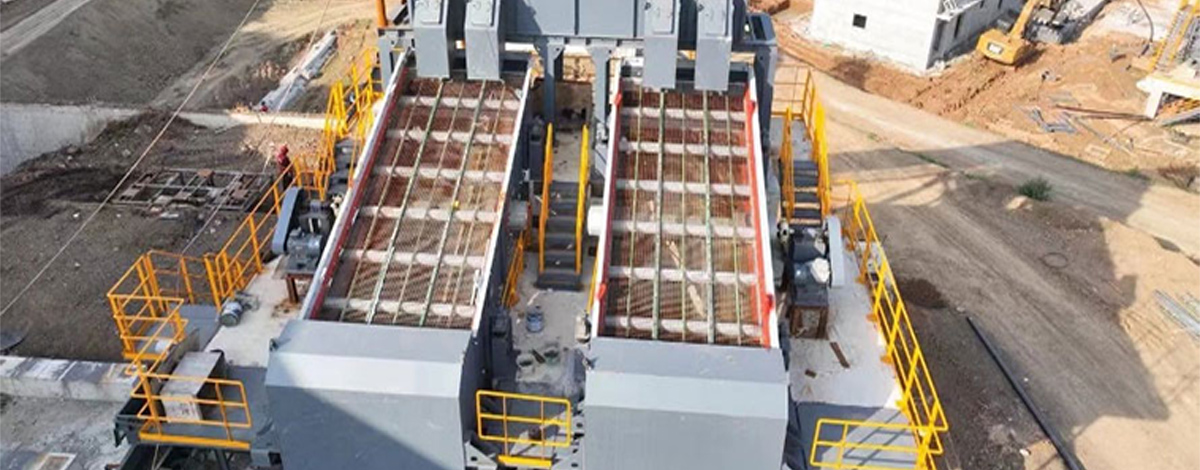

Screen as the final crushed stage which separate qualified crushed stone product and return the bigger size stone to the crusher machine.

Normally we would like use bigger model capacity screen which can separate fully efficiently, and let all the qualified stone product into the product warehouse, if the small model capacity screen maybe let the qualified stone product return back the crusher to process again.

If you want to know how to choose or design the VIS crusher, please contact us, we will give our most professional suggestions or design.

Screen working in quarry


Screen working in quarry

Screen working in quarry


Screen working in quarry

Screen working in quarry


Screen working in quarry

Technical Data

VS

Model Deck dimension (mm) Decks Leaning angle of screen (°) Top deck max.opening (mm) Maximum feed size (mm) Speed (r/min) Double amplitude (mm) Capacity (t/h) Power (kW) Overall dimension (mm)
2VS1237 1200×3700 2 20 3-50 200 970 8 7.5-80 15 4010×2250×2660
3VS1237 1200×3700 3 20 3-50 200 970 8 7.5-80 15 4010×2250×3410
2VS1548 1500×4800 2 20 5-50 400 970 8 50-208 15 5120×2590×3060
3VS1548 1500×4800 3 20 5-50 400 970 8 50-250 15 5120×2590×3540
2VS1848 1800×4800 2 20 5-80 400 970 8 75-600 18.5 5120×2950×3060
3VS1848 1800×4800 3 20 5-80 400 970 8 75-600 18.5 5120×2950×3540
2VS1860 1800×6000 2 20 5-80 400 970 8 75-600 18.5 6260×2950×3480
3VS1860 1800×6000 3 20 5-80 400 970 8 85-700 22 6260×2990×3960
2VS2160 2100×6000 2 20 5-150 400 730 6-8 85-700 22 6270×3410×3670
3VS2160 2100×6000 3 20 5-150 400 730 6-8 85-700 30 6270×3470×4100
2VS2460 2400×6000 2 20 5-150 400 730 6-8 100-800 37 6270×3770×3610
3VS2460 2400×6000 3 20 5-150 400 730 6-8 100-800 37 6270×3790×4100

VSX

Model Screen Deck Size (mm) Number of Decks Screen Deck Inclination Angle (°) Mesh Size (mm) Max Feed Size (mm) Vibration Frequency (r/min) Double Amplitude (mm) Capacity (t/h) Power (kW) Dimensions (mm)
VSX1545-2 1500×4500 2 18(18-25) 2-70 200 800-900 7-12 45-380 11 4796×3190×2829
VSX1545-3 1500×4500 3 18(18-25) 2-70 200 800-900 7-12 45-380 15 4796×3190×3407
VSX1845-2 1800×4500 2 18(18-25) 2-70 200 800-900 7-12 60-450 15 4797×3490×2853
VSX1845-3 1800×4500 3 18(18-25) 2-70 200 800-900 7-12 60-450 22 4797×3623×3431
VSX1860-2 1800×6000 2 18(18-25) 2-70 200 800-900 7-10 75-600 15 6223×3607×3437
VSX1860-3 1800×6000 3 18(18-25) 2-70 200 800-900 7-12 75-600 30 6223×3648×4016
VSX1860-4 1800×6000 4 18(18-25) 2-70 200 800-900 7-12 75-600 37 6223×3670×4436
VSX2160-2 2100×6000 2 18(18-25) 2-70 200 800-900 7-12 85-700 22 6223×3907×3437
VSX2160-3 2100×6000 3 18(18-25) 2-70 200 800-900 7-12 85-700 30 6223×3948×4016
VSX2160-4 2100×6000 4 18(18-25) 2-70 200 800-900 7-11 85-700 37 6223×3970×4436
VSX2460-2 2400×6000 2 18(18-25) 2-70 200 800-900 7-12 100-800 22 6223×4207×3437
VSX2460-3 2400×6000 3 18(18-25) 2-70 200 800-900 7-11 100-800 30 6223×4248×4016
VSX2460-4 2400×6000 4 18(18-25) 2-70 200 800-900 7-10 100-800 37 6223×4270×4436
VSX2760-2 2700×6000 2 18(18-25) 2-70 200 800-900 7-12 120-900 30 6223×4550×3469
VSX2760-3 2700×6000 3 18(18-25) 2-70 200 800-900 7-11 120-900 37 6223×4570×4038
VSX3072-2 3000×7200 2 20(20-25) 2-70 200 800-900 7-11 150-1200 37 7277×4820×4238
VSX3075-2T 3000×7200 2 20(20-25) 2-150 300 800-900 7-12 180-1800 22×2 7419×4909×4298
VSX3075-3T 3000×7200 3 20(20-25) 2-150 300 800-900 7-12 180-1800 30×2 7419×4930×5069
VSX3680-2T 3600×7500 2 21(20-25) 2-150 300 800-900 7-12 225-2250 30×2 7923×5540×4267
VSX3680-3T 3600×7500 3 20(20-25) 2-150 300 800-900 7-12 225-2250 37×2 7844×5601×5308

Note:
The product images, models, data, functions, performances, specifications, and parameters on this website are for reference only. SBMX may make improvements to the aforementioned content. For specific information, please refer to the actual product and its product manual. Unless otherwise specified,SBMX reserves the right to interpret the data involved on this website.
